recessed track lighting Eaglerise led+batten+lights+5ft track+lighting+systems led

High lumens commercial track lighting fixtures

No.TS-TR40WA

Product code: TS-TR40WA Power (wattage): 40W Base: Two Phase(2/3 wires) or Three Phase(Four wires) Input voltage: 220-240V AC 50/60HZ LED Driver: Lifud Flicker Free: Yes Anti Glare: Yes (UGR<19) Dimmable: Not Avaliable LED source: COB 48W Bridgelux chip Light Color: Warm white(3000K), Neutral White (4000K), White(5000K), Cool white(6000K) LED Lumens: 4000lm+/-3% LED CRI: >90Ra Beam angle: 15°/24°/36°/60° Check below for More about High lumens commercial track lighting fixtur

Get A Quote

Add to Quote List Browse the list

Description

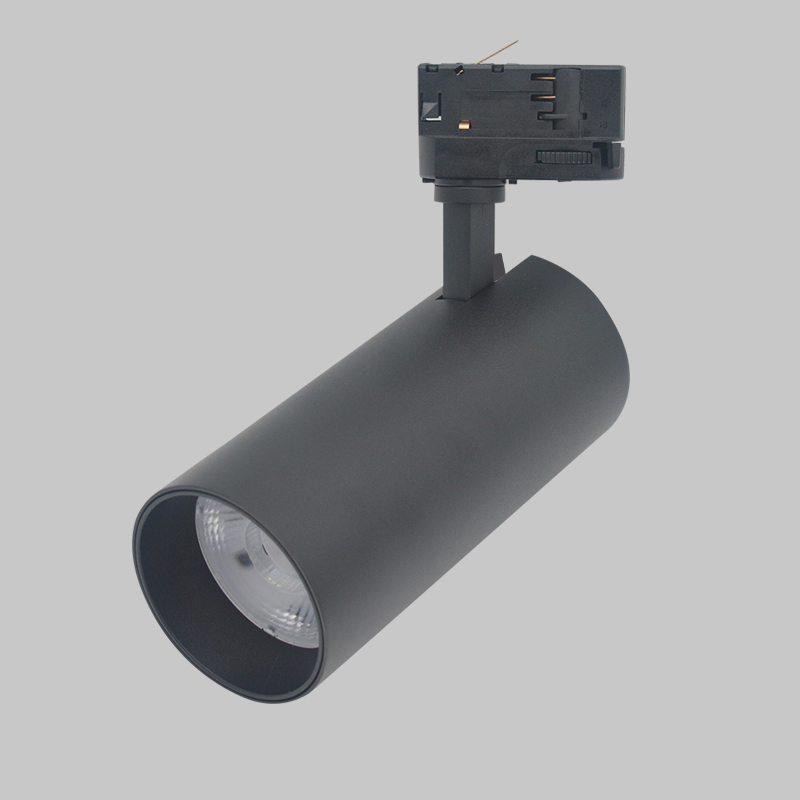

High lumens commercial track lighting fixtures

Technical Datas:

Product code: TS-TR40WA
Power (wattage): 40W
Base: Two Phase(2/3 wires) or Three Phase(Four wires)
Input voltage: 220-240V AC 50/60HZ
LED Driver: Lifud
Flicker Free: Yes
Anti Glare: Yes (UGR<19)
Dimmable: Not Avaliable
LED source: COB 48W Bridgelux chip
LED quantities: 1pcs
Light Color: Warm white(3000K), Neutral White (4000K), White(5000K), Cool white(6000K)
LED Lumens: 4000lm+/-3%
LED CRI: >90Ra
Beam angle: 15°/24°/36°/60°
IP Rate: IP20
Body Color: Sandy White / Sandy Black
Materials: Aluminium body
Size (dimension): D90xH180MM (Not including Adaptor)
Operating Temp.: -30 ~ 75℃
Life Span: 50000 Hours
Cetificates: CE-EMC, CE-LVD, RoHS, FCC, C-tick

Other Related Items:

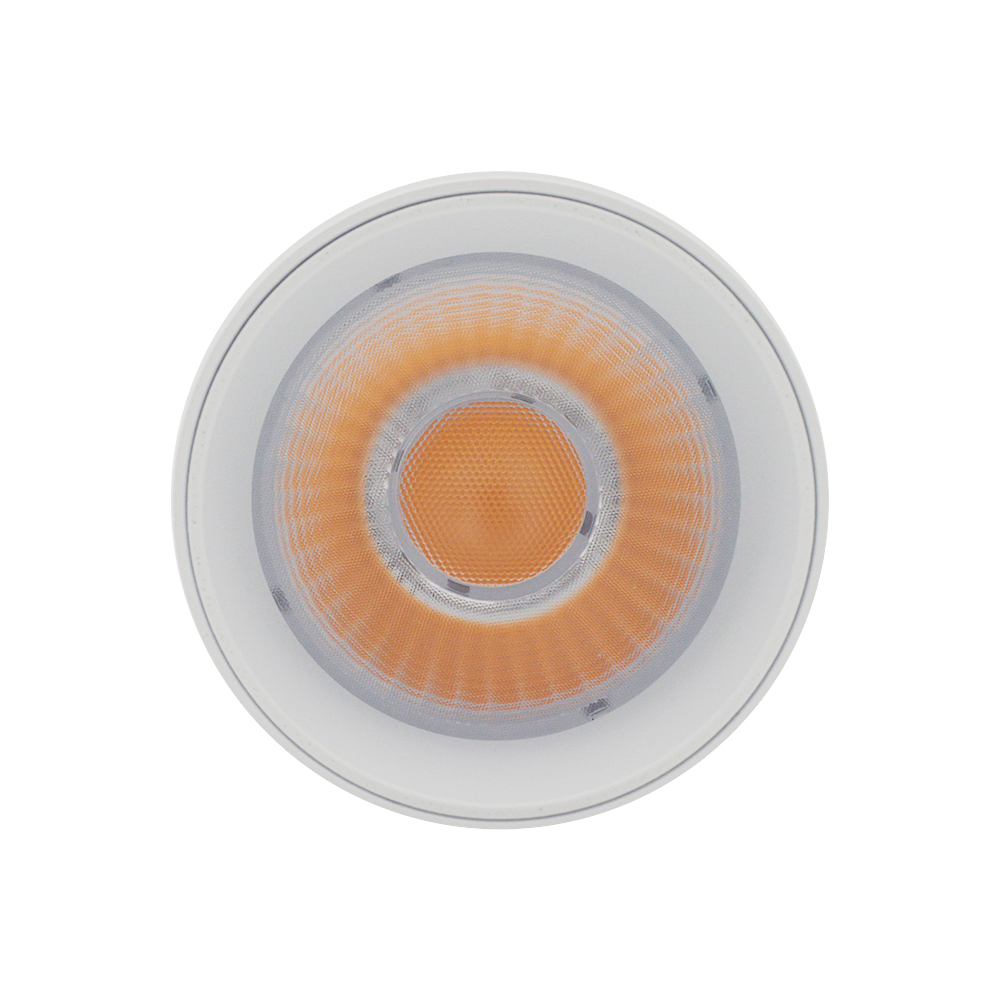

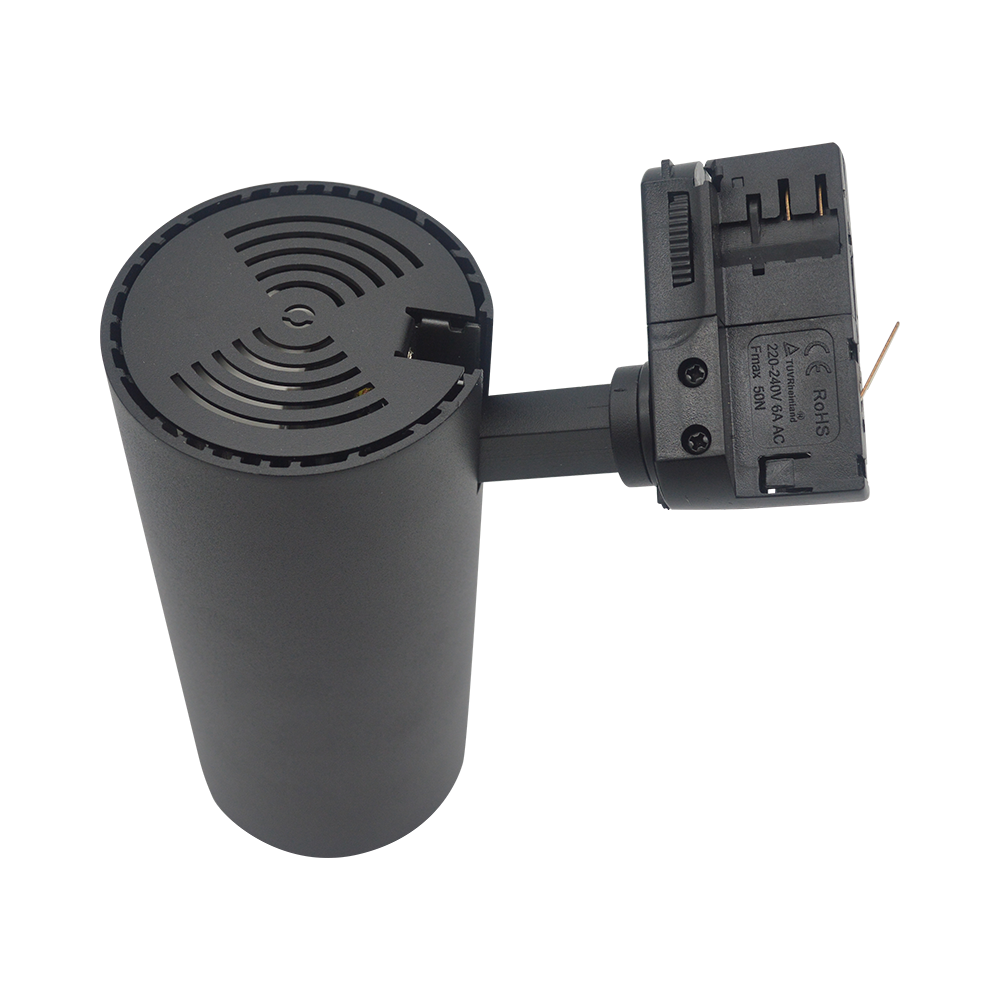

Model No.	TS-TR15WA	TS-TR20WA	TS-TR30WA	TS-TR40WA
Wattage	15W	20W	30W	40W
Adaptor Base	2 Phase (2 wires / 3 wires ), 3 phase ( 4 wires )
Input Voltage	85-265V AC 50/60 Hz
Power Factor	PF > 0.95
LED Source	18W Bridgelux COB	24W Bridgelux COB	30W Bridgelux COB	48W Bridelux COB
CCT	Warm White (2700-3500K), Neutral White(4000-4500K), Cold White(5000-6500K)
Lumens	1500lm	2000lm	3000lm	4000lm
CRI	CRI > 90 (Ra)
Beam Angle	15° / 24° / 36° / 60°
LED Driver	Lifud / Eaglerise Brand
IP Rate	IP20
Material	Aluminium Body + PMMA Lens
Size(not include adaptor)	D65*H150mm	D65*H180mm	D80*H180mm	D90*H180mm
Body Color	Sandy Black / Sandy White
Operating Temp.	-30℃ ~ 75℃

High lumens commercial track lighting fixtures

Choosing high lumens commercial track lighting fixtures involves considering several factors to ensure that the fixtures meet your specific lighting needs and requirements. Here are some important aspects to consider when selecting high lumens commercial track lighting fixtures:

1. Brightness (Lumens): Determine the required brightness for your space. For commercial applications, you may need higher lumen output to provide adequate illumination. Look for fixtures that deliver the necessary lumens to create a well-lit environment.

2. Color Temperature: Choose a color temperature that suits the purpose of the space. For commercial areas, neutral white (4000K) or daylight white (5000K) are usually recommended, as they provide a clean, bright appearance and promote alertness.

3. Color Rendering Index (CRI): A high CRI is crucial in commercial settings to accurately render colors. Choose fixtures with a CRI of at least 80, but ideally 90 or above for the best color representation.

4. Beam Angle: Consider the beam angle of the fixture, which affects the spread of light. Narrower beam angles (e.g., 15° to 30°) create focused, intense light, while wider beam angles (e.g., 60° or more) produce a more diffuse, even illumination. Choose the appropriate beam angle based on the desired lighting effect and the size of the area you need to cover.

5. Type of Track System: Ensure that the track lighting fixtures are compatible with the track system installed in your space. Common track systems include H, J, and L types. Check the product specifications to confirm compatibility.

6. Dimmability: If you need adjustable lighting levels, choose fixtures that are compatible with dimmer switches. Verify the compatibility of the dimmer switch with the LED track lights to avoid flickering or reduced lifespan.

7. Energy Efficiency: Opt for LED track lighting fixtures, as they are more energy-efficient and have longer lifespans than traditional incandescent or halogen bulbs.

8. Durability and Quality: Choose fixtures made from high-quality materials, such as aluminum or steel, to ensure durability and longevity. Look for reputable manufacturers that offer warranties on their products.

9. Design and Aesthetics: Select track lighting fixtures that complement the design and aesthetics of your commercial space. There are various styles, finishes, and shapes available to suit different design preferences.

10. Budget: Consider your budget and compare the features and quality of different fixtures within your price range to find the best value for your investment.

By taking these factors into account, you can choose high lumens commercial track lighting fixtures that deliver the right illumination, aesthetics, and functionality for your specific needs.
