TS-DO12WNA/TS-DO18WNA

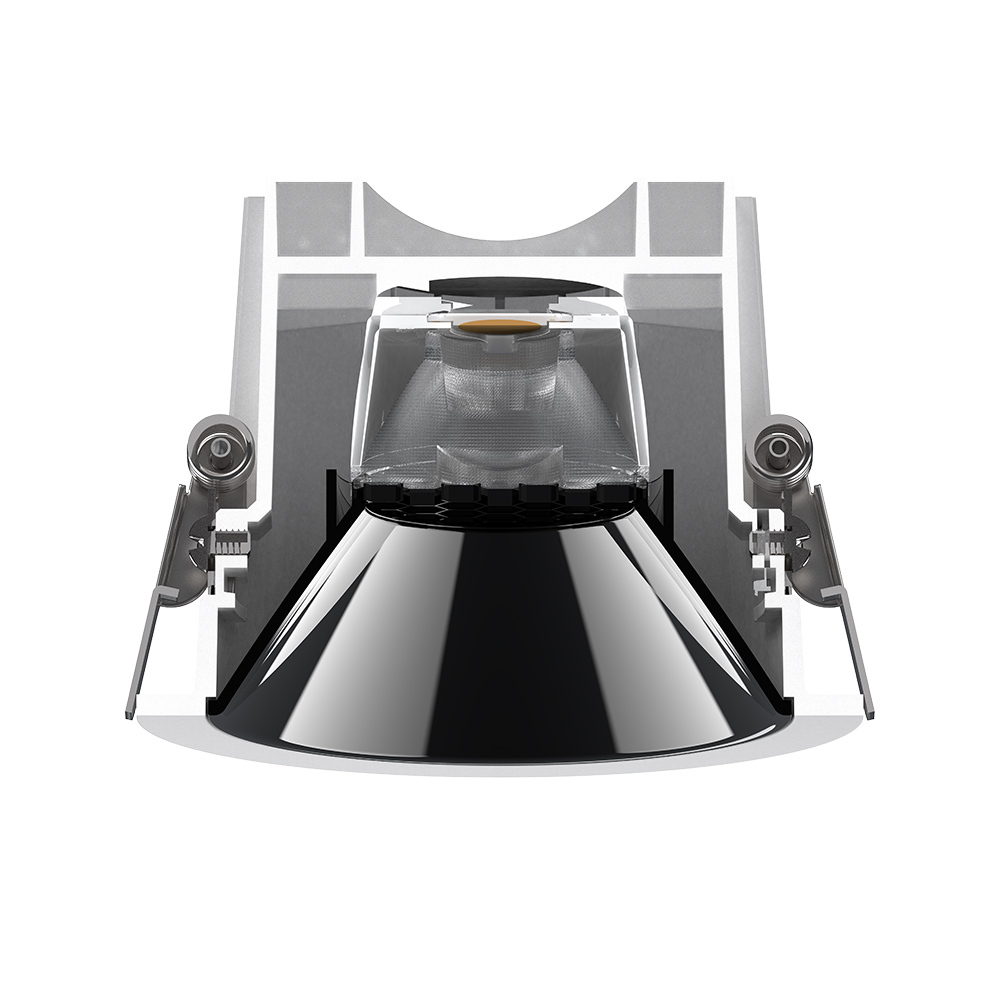

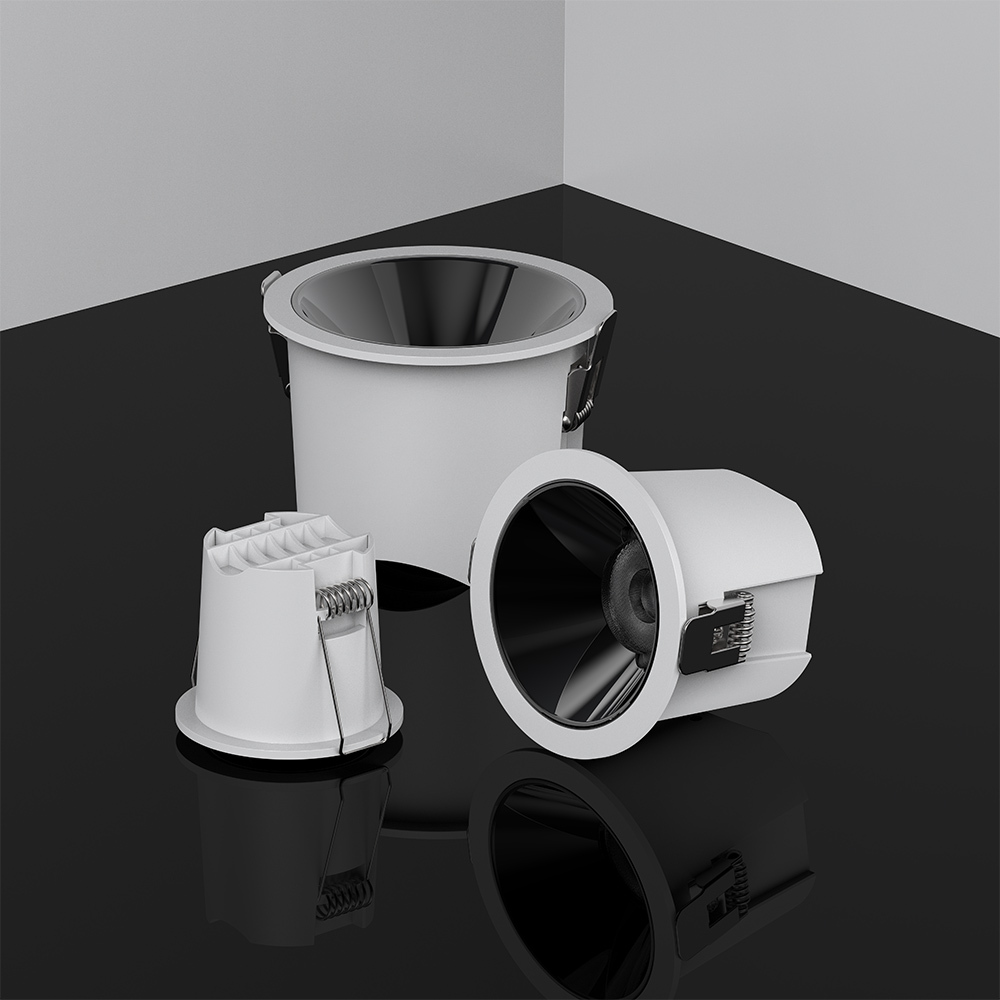

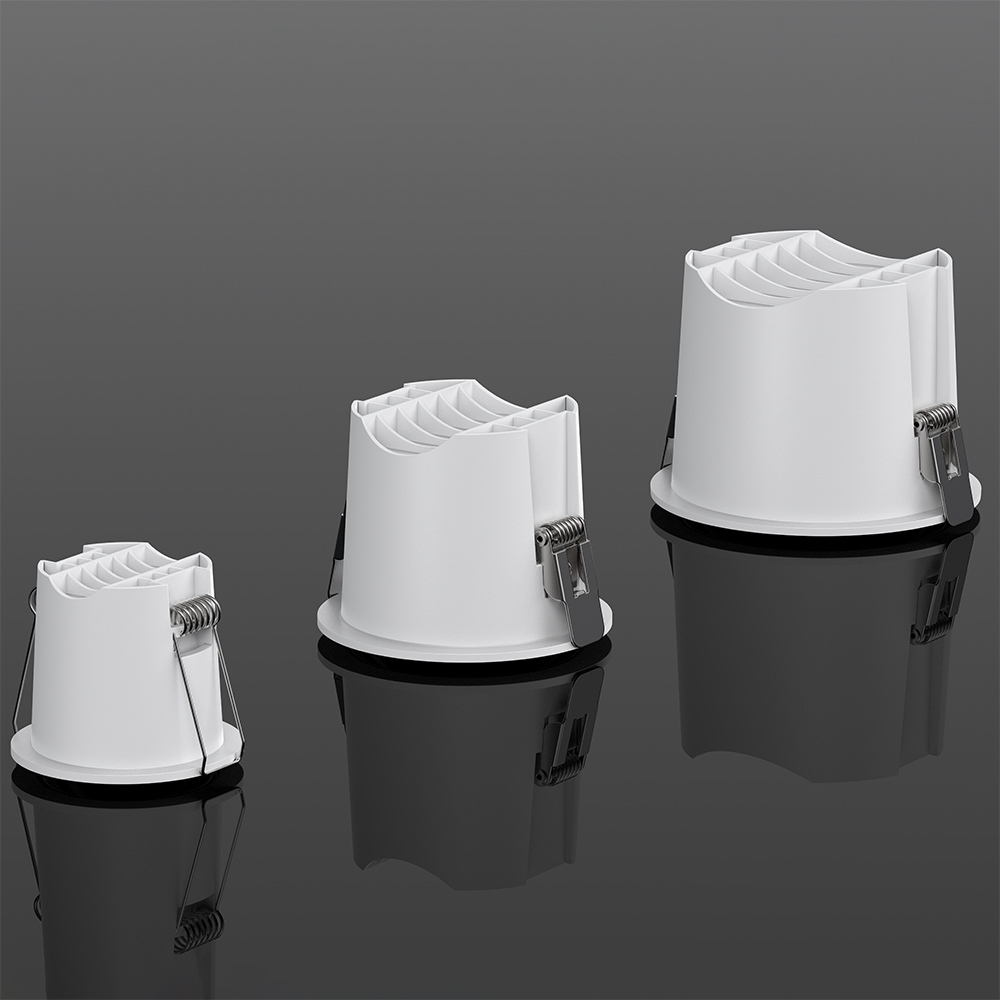

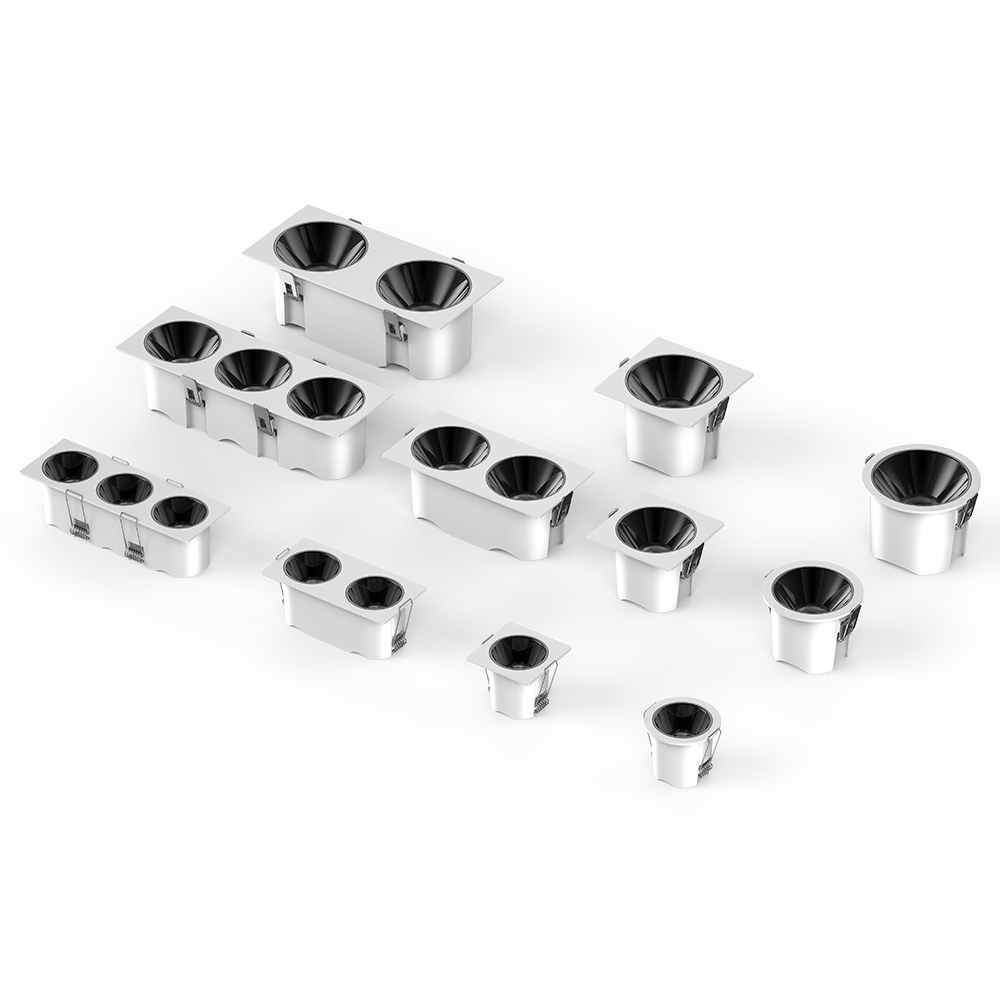

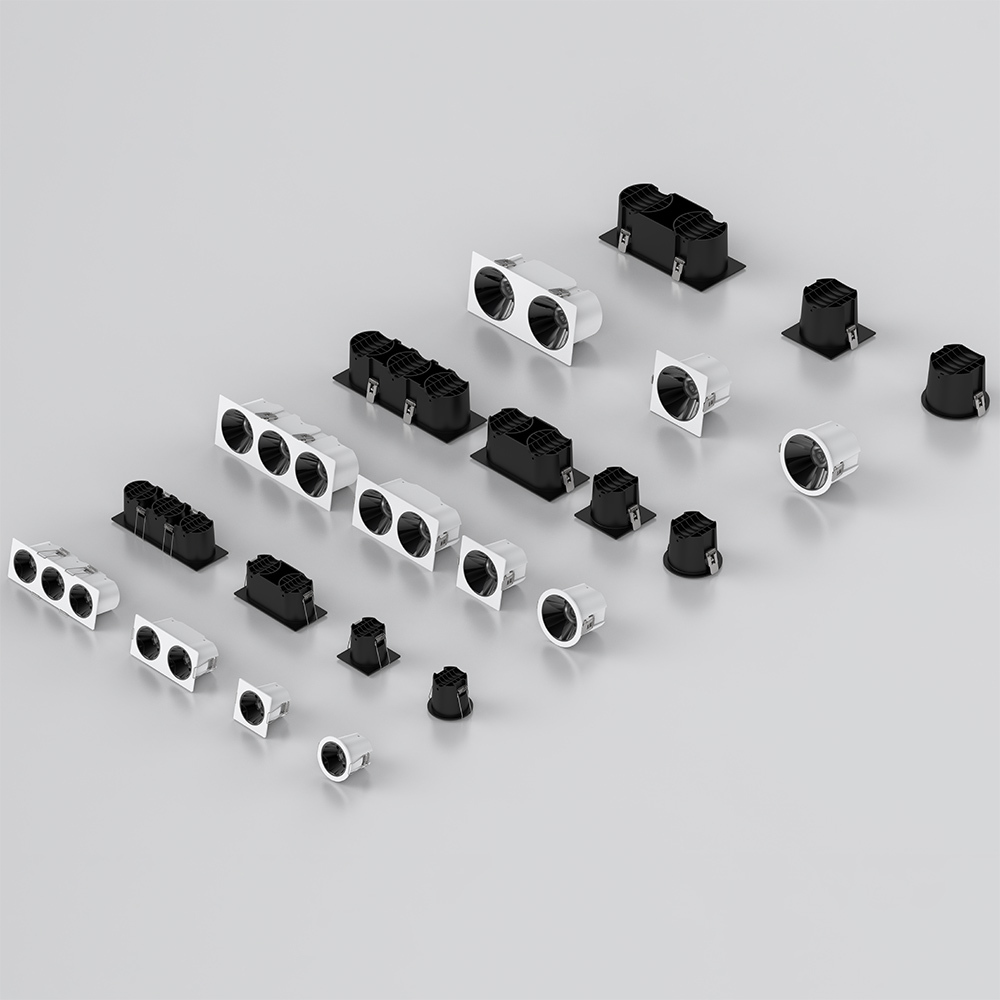

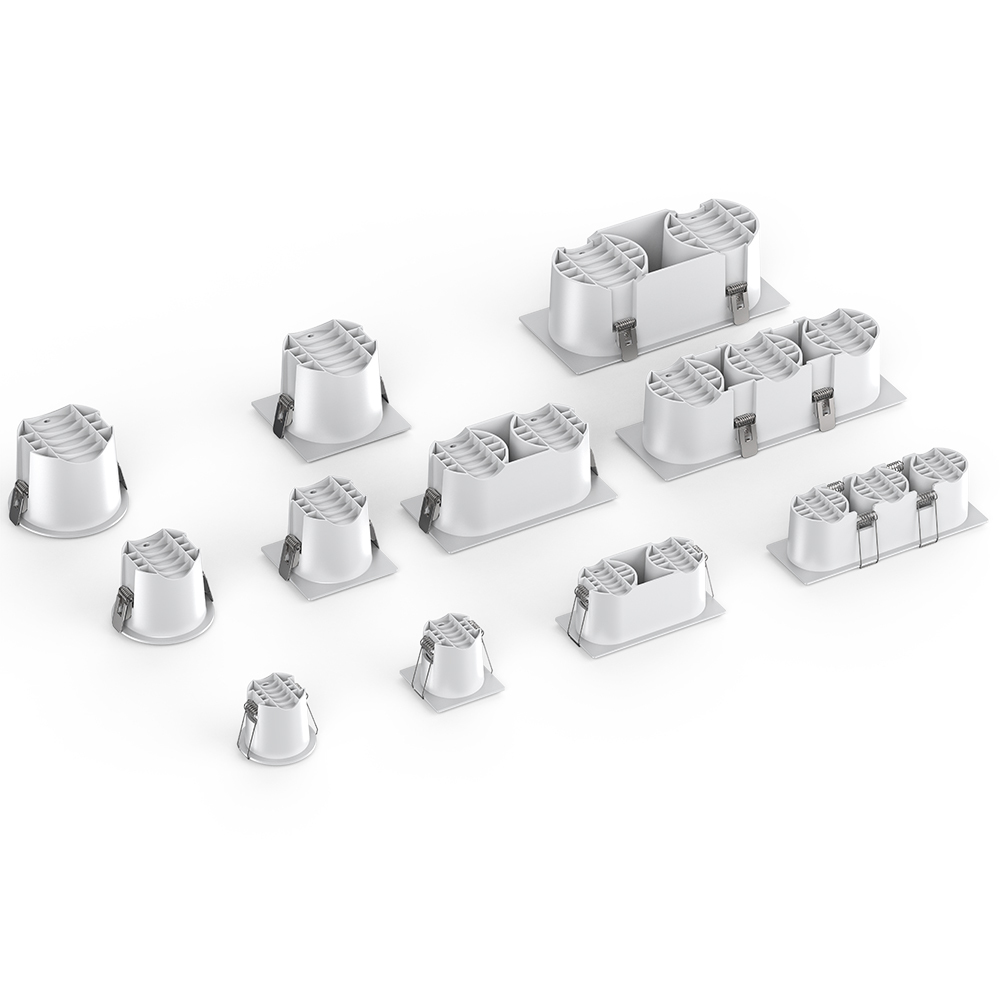

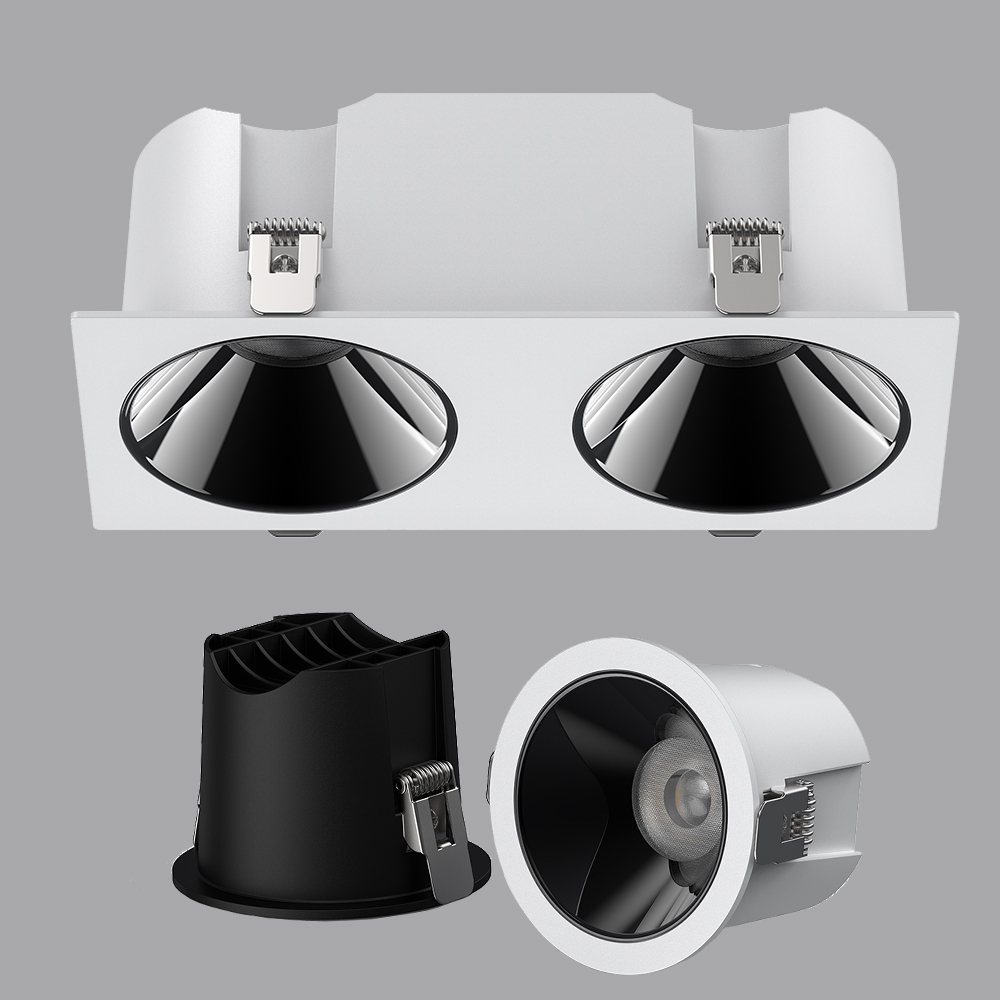

Recessed ceiling lights LED downlights round and square 7W 10W 18W
Round and Square Recessed Ceiling Lights LED Downlights.
Available in 7W, 10W, and 18W options, these downlights are designed to illuminate your space with style and efficiency.
With their sleek and modern design, they seamlessly blend into any decor, adding a touch of sophistication. Whether you prefer the classic round shape or the contemporary square design, we have the perfect option to suit your aesthetic preferences.
These LED downlights offer exceptional brightness and performance, while also being energy-efficient, helping you save on electricity bills.
Round
 |
 |
 |
| 7W round led downlights | 10W round Recessed ceiling lights | 18W Recessed led downlights |
| Code | TS-DO07WGR | TS-DO10WGR | TS-DO18WGR |
|---|---|---|---|
| Rated Power | 7W | 10W | 18W |
| Cut-Out | D 55MM | D 75MM | D 90MM |
| Input Current | 32mA@220V | 45mA@220V | 82mA@220V |
| Lumens | 700lm +/-5% | 1000lm +/-5% | 1800lm +/-5% |
| Beam Angle | 15°, 24°, 36°,55° | 15°, 24°, 36°,55° | 15°, 24°, 36°,55° |
| Size | D63xH52MM | D85xH64MM | D102xH74MM |
 |
 |
 |
| 7W Recessed ceiling lights | 10W square LED downlights | 18W square Recessed downlights |
| Code | TS-DO07WGS | TS-DO10WGS | TS-DO18WGS |
|---|---|---|---|
| Rated Power | 7W | 10W | 18W |
| Cut-Out | 55*55MM | 75*75MM | 90*90MM |
| Input Current | 32mA@220V | 45mA@220V | 82mA@220V |
| Lumens | 700lm +/-5% | 1000lm +/-5% | 1800lm +/-5% |
| Beam Angle | 15°, 24°, 36°,55° | 15°, 24°, 36°,55° | 15°, 24°, 36°,55° |
| Size | 63x63xH52MM | 85x85xH64MM | 102x102xH74MM |
 |
 |
 |
| 7W X 2 Recessed led downlights | 10W X 2 Recessed led downlights | 18W X 2 Recessed led downlights |
| Code | TS-DO07x2WGS | TS-DO10x2WGS | TS-DO18x2WGS |
|---|---|---|---|
| Rated Power | 7Wx2 | 10Wx2 | 18Wx2 |
| Cut-Out | 120*55MM | 150*75MM | 205*90MM |
| Input Current | 64mA@220V | 90mA@220V | 164mA@220V |
| Lumens | 1400lm +/-5% | 2000lm +/-5% | 3600lm +/-5% |
| Beam Angle | 15°, 24°, 36°,55° | 15°, 24°, 36°,55° | 15°, 24°, 36°,55° |
| Size | 130x63xH52MM | 165x85xH64MM | 220x102xH74MM |
 |
 |
| 7W X 3 Recessed ceiling lights | 10W X 3 Recessed ceiling lights |
| Code | TS-DO07x3WGS | TS-DO10x3WGS |
|---|---|---|
| Rated Power | 7Wx3 | 10Wx3 |
| Cut-Out | 175*55MM | 230*75MM |
| Input Current | 96mA@220V | 135mA@220V |
| Lumens | 2100lm +/-5% | 3000lm +/-5% |
| Beam Angle | 15°, 24°, 36°,55° | 15°, 24°, 36°,55° |
| Size | 185x63xH52MM | 240x85xH64MM |
| Products Name |
round and square Recessed ceiling lights LED downlights |
|---|---|
| Body Color | Sandy White / Sandy Black |

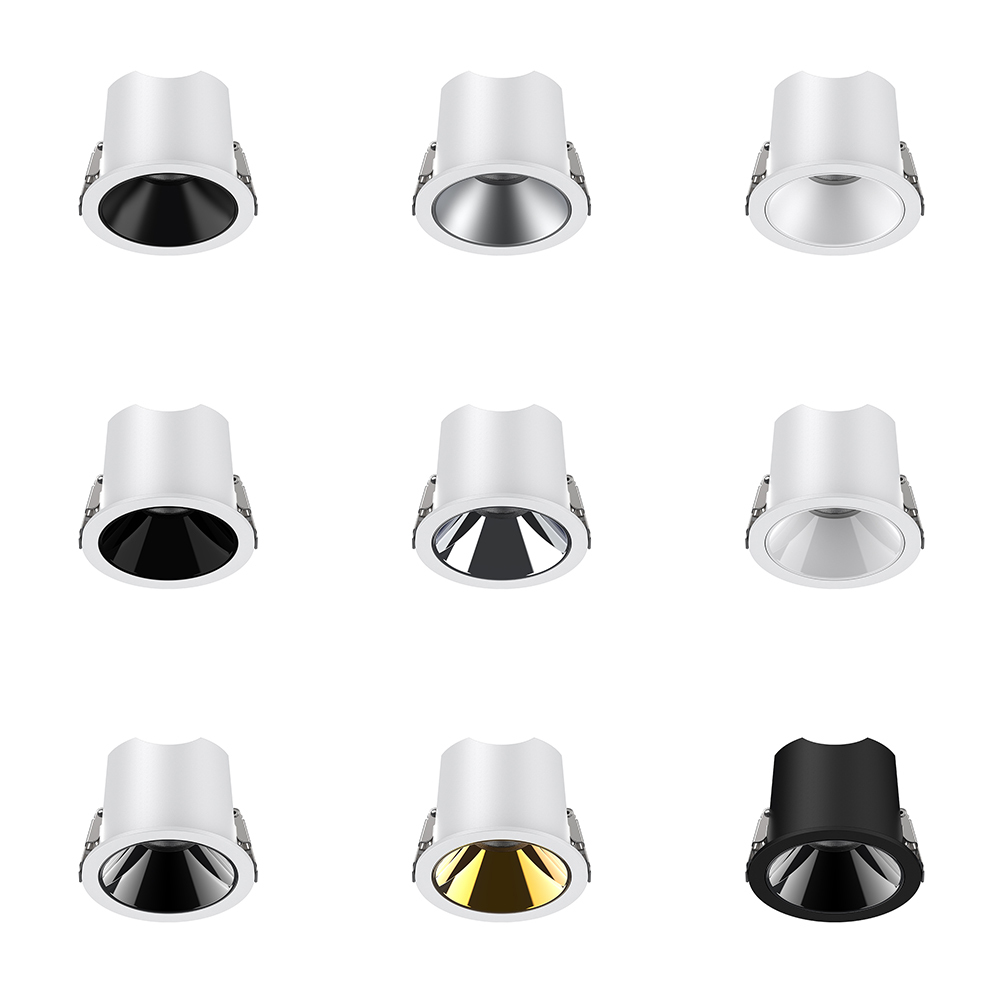

| Reflector Color | Bright Black/ Bright White / Bright Sliver / Matte Sliver |
| Materials | Aluminium Body + Lens |
| IP Rate | IP44 |
| Add Honeycomb | Available |
| Anti-glare | Yes |
| UGR | <19 |
| Flicker Free | Yes |
| Installation | Recessed Type |
| Certificates | CE-EMC, CE-LVD, RoHS, FCC, C-tick |
| Working Voltage | 220-240VAC / 100-277VAC |
|---|---|
| Frequency | 50/60Hz |
| Power Factor(PF) | >0.5 / >0.9 |
| Driver Brand | Lifud, Eaglerise, Kegu, Philips |
| Dimmable | Non-DIM / TRIAC / 0-10V / Dali / Push Dimming |
| Total Harmonic Distortion(THD) | ≤15% |
| Color Temperature | 27/30/40/45/50/60K Warm White/Neutral White/ Day White/ Cool White |
|---|---|
| Lighting Efficiency | 100lm/W |
| COB Brand | Bridgelux, CREE, Philips |
| Color Render Index | Ra>80 / Ra>90(Default) / Ra>95 |
| SDCM | <5 |
| Anti Glare | Yes, (UGR<19) |
| Flicker Free | Yes |
