TS-DO12WNA/TS-DO18WNA

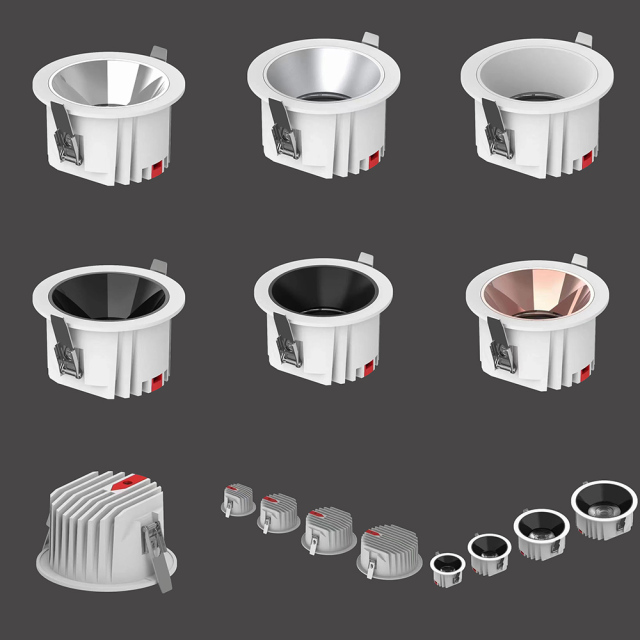

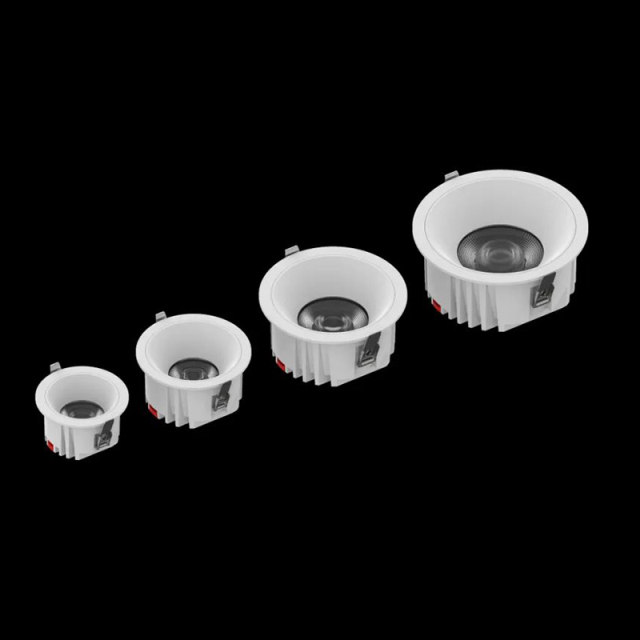

LED Dimmable recessed ceiling light downlights China factory
Illuminate your space with our LED Dimmable Recessed Ceiling Light Downlights, available in a range of wattages to suit your specific lighting needs. Choose from 12W, 15W, 25W, and 30W options, each offering superior brightness and performance.
With their dimmable feature, you have complete control over the lighting intensity, creating the perfect ambience for any occasion. The recessed design ensures a seamless and sleek installation, seamlessly blending into your ceiling.
Not only do these LED downlights provide exceptional lighting quality, but they are also energy-efficient and built to last. Upgrade your lighting game and experience the perfect blend of style, efficiency, and versatility with our LED Dimmable Recessed Ceiling Light Downlights.
| COB Type LED Dimmable recessed ceiling light downlights | |
 |
 |
| Code | TS-DO12WECOB | TS-DO15WECOB | TS-DO25WECOB | TS-DO30WECOB |
|---|---|---|---|---|
| Rated Power | 12W | 15W | 25W | 30W |
| Cut-Out | D 75MM | D95MM | D120MM | D 145MM |
| Input Current | 55mA@220V | 68mA@220V | 113mA@220V | 136mA@220V |
| Lumens | 1200lm +/-5% | 1500lm +/-5% | 2500lm +/-5% | 3000lm +/-5% |
| Beam Angle | 15°, 24°, 36°,50° | 15°, 24°, 36°,50° | 15°, 24°, 36°,50° | 15°, 24°, 36°,50° |
| Size | D85xH48MM | D105xH55MM | D135xH63MM | D160xH68MM |
| SMD Type LED Dimmable recessed ceiling light downlights | |
 |
 |
| Code | TS-DO12WESMD | TS-DO15WESMD | TS-DO25WESMD | TS-DO30WESMD |
|---|---|---|---|---|
| Rated Power | 12W | 15W | 25W | 30W |
| Cut-Out | D 75MM | D95MM | D120MM | D 145MM |
| Input Current | 55mA@220V | 68mA@220V | 113mA@220V | 136mA@220V |
| Lumens | 1440lm +/-5% | 1800lm +/-5% | 3000lm +/-5% | 3600lm +/-5% |
| Beam Angle | 90° | 90° | 90° | 90° |
| Size | D85xH48MM | D105xH55MM | D135xH63MM | D160xH68MM |
| Products Name |
LED Dimmable recessed ceiling light downlights |
|---|---|
| Body Color | Sandy White / Sandy Black |
| Reflector Color | Matte Black/ Matte White / Matte Silver/ Gun Black / Gloden |
| Materials | Aluminium Body + Lens / PC cover |
| IP Rate | IP44 |
| Add Honeycomb | Available |
| Anti-glare | Yes |
| UGR | <19 |
| Flicker Free | Yes |
| Installation | Recessed Type |
| Certificates | CE-EMC, CE-LVD, RoHS, FCC, C-tick |
| Working Voltage | 220-240VAC / 100-277VAC |
|---|---|
| Frequency | 50/60Hz |
| Power Factor(PF) | >0.5 / >0.9 |
| Driver Brand | Philips, Osram, Lifud, Eaglerise, Kegu |
| Dimmable | Non-DIM / TRIAC / 0-10V / Dali / Push Dimming |
| Total Harmonic Distortion(THD) | ≤15% |
| Color Temperature | 27/30/40/45/50/60K Warm White/Neutral White/ Day White/ Cool White |
|---|---|
| Lighting Efficiency | 120lm/W |
| COB Brand | Bridgelux, CREE, Philips |
| Color Render Index | Ra>80 / Ra>90(Default) / Ra>95 |
| SDCM | <5 |
| Anti Glare | Yes, (UGR<19) |
| Flicker Free | Yes |
