TS-DO12WNA/TS-DO18WNA

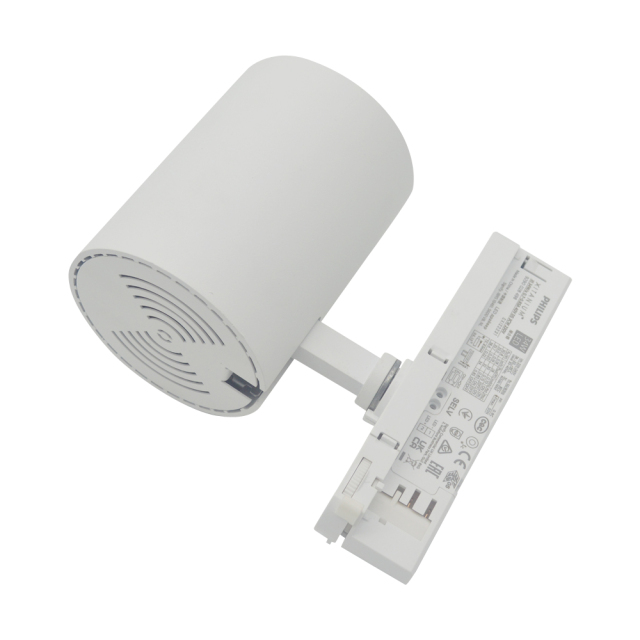

High brightness 40W drop ceiling track lighting
Technical Datas:
Product code: TS-TR40WC
Power (wattage): 40W
Base: Two Phase(2/3 wires) or Three Phase(Four wires)
Input voltage: 220-240V AC 50/60HZ
LED Driver: Philips / Eaglrise / KGP / PowerGear / Allooking Brand
Flicker Free: Yes
Anti Glare: Yes
Dimmable: Avaliable (Traic, 0-10V, Dali)
LED source: COB 48W Bridgelux chip
LED quantities: 1pcs
Light Color: Warm white(3000K), Neutral White (4000K), White(5000K), Cool white(6000K)
LED Lumens: 2000lm+/-3%
LED CRI: >95Ra
Beam angle: 15°/24°/36°/60°
IP Rate: IP20
Body Color: Sandy White/ Sandy Black
Materials: Aluminium body
Size (dimension): D90xH160MM
Operating Temp.: -30 ~ 75℃
Life Span: 50000 Hours
Cetificates: CE-EMC, CE-LVD, RoHS, FCC, C-tick
|
|
|
|
|
|
| Model No. | TS-TR20WC | TS-TR30WC | TS-TR40WC |
| Wattage | 20W | 30W | 40W |
| Adaptor Base | 2 Phase (2 wires / 3 wires) , 3 Phase (4 wires) | ||
| LED Driver | Philips / Eaglerise / KGP / PowerGear / Allooking Brand |
||
| Input Voltage | 220-240VAC / 85-265V AC 50/60 Hz | ||
| Power Factor | PF > 0.9 | ||
| LED Source | 24W Bridgelux COB | 30W Bridgelux COB | 48W Bridelux COB |
| CCT | Warm white(3000K), Neutral White (4000K), White(5000K), Cool white(6000K) | ||
| Lumens | 2000lm | 3000lm | 4000lm |
| CRI | CRI > 90 (Ra) | ||
| Beam Angle | 15° / 24° / 36° / 60° | ||
| IP Rate | IP20 | ||
| Material | Aluminium Body + PMMA Lens | ||
| Size(not include adaptor) | D80*H125mm | D90*H125mm | D90*H160mm |
| Body Color | Sandy Black / Sandy White | ||
| Operating Temp. | -30℃ ~ 75℃ | ||
